Safety Control Mat
Safety Control Mat acts
as an emergency off switch for automated
electrical machinery. Simply step on the mat to turn the automated
machine off. To restart simply step off and contact the reset switch
before restarting the machinery.
It is an excellent safety precaution for automated machinery.
-
Corrugated chemical and slip resistant
vinyl surface mat
-
Internal vinyl coated ribbon switches
-
Edges beveled for safety
-
Color: Black
-
Actuation Force: 22 lbs
-
Recommended Voltage & Current: 24 VAC
or VDC at 1 amp or less
-
Maximum Force: 1100 psi
-
Lead Wire: 18/4 AWG Dri-Run Cable 6 ft std
-
Weight: 3.5 lbs/ft2
-
Max Size: 48"x192"
- Conforms to ANSI/RIA standard R15.06-1986 for Robot
Guarding
Click to enlarge |

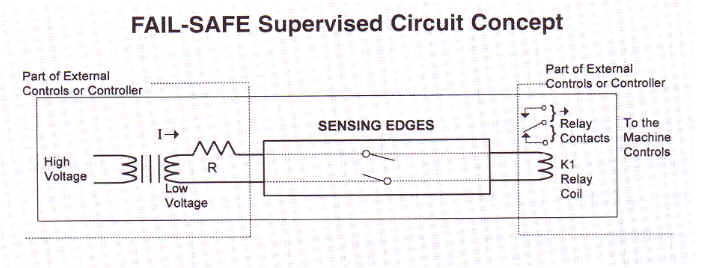

Circuit Wiring
Detects power failures, open or shorted leads, internal
faults |
Safety Control Mat
Product # 120SM
Safety Control Mat Controller
Product # 140SM
Controls the amount of voltage which passes from the machine
to the mat. It will also not allow the machine to be reset if there is
a short or open circuit in the mat or lead cable and protects against
power surges. A constant
monitor to ensure the mat is operating properly.
Supply Vol;tage: 110/241V AC 50/60 HZ
Reset: Manual (Auto Reset available, not listed)
Available in wall or rail mounted versions.
|
